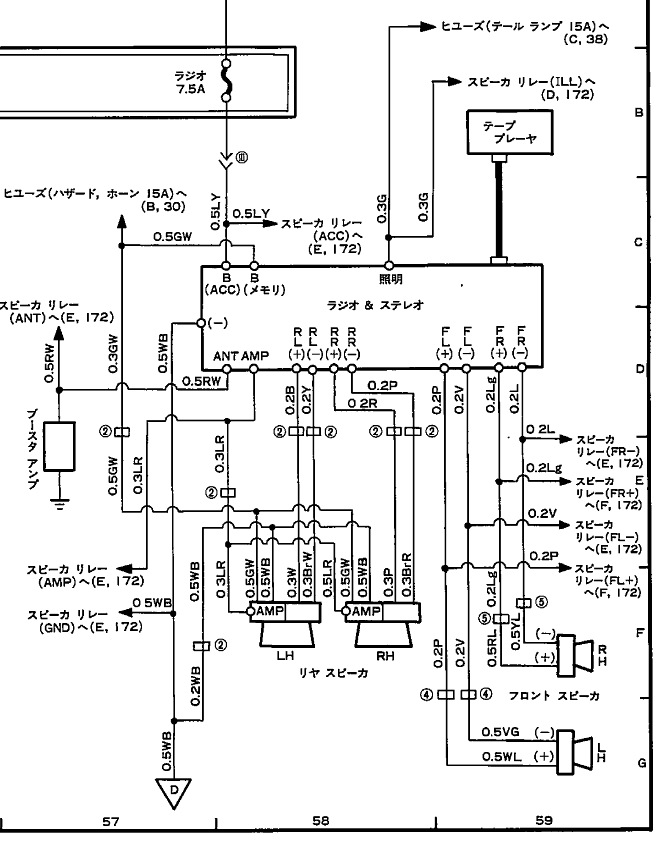

Original Stereo Wiring Diagram

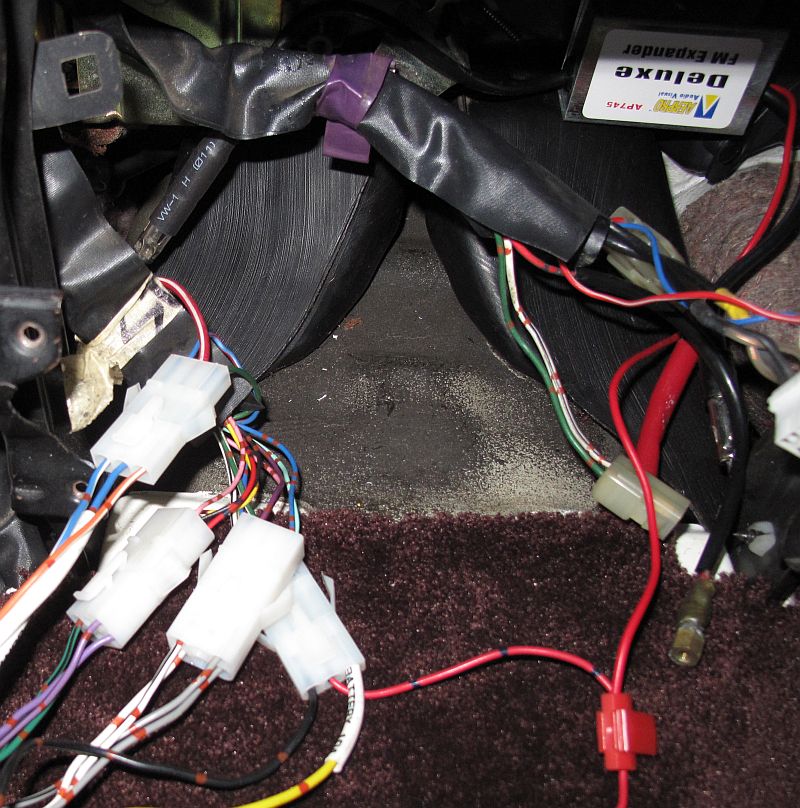

Molex Wiring from Car Loom to Stereo Loom

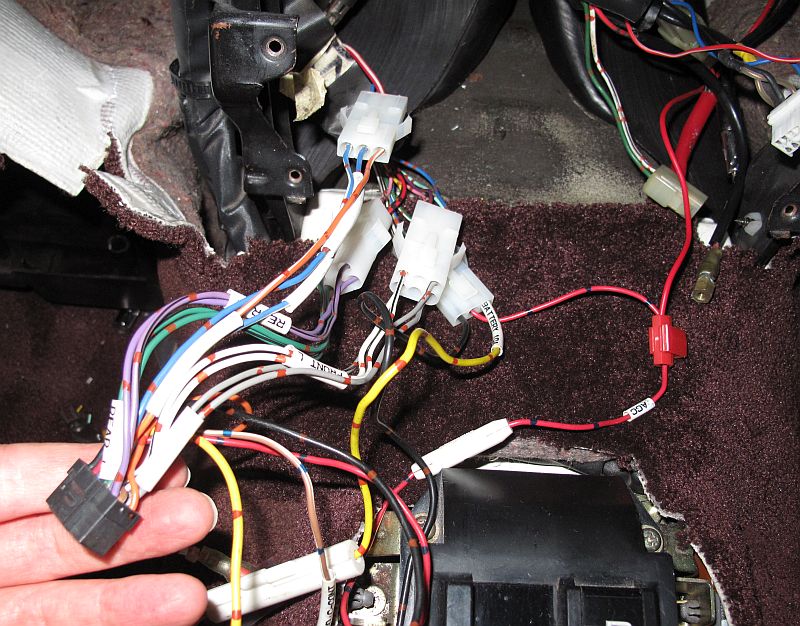

More Molex connectors

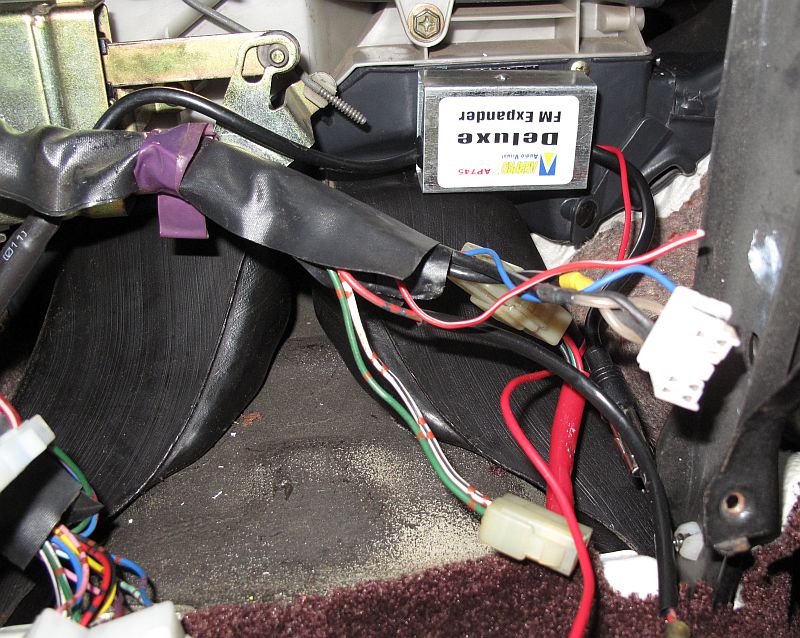

FM band expander, to get Australian Fm frequencies

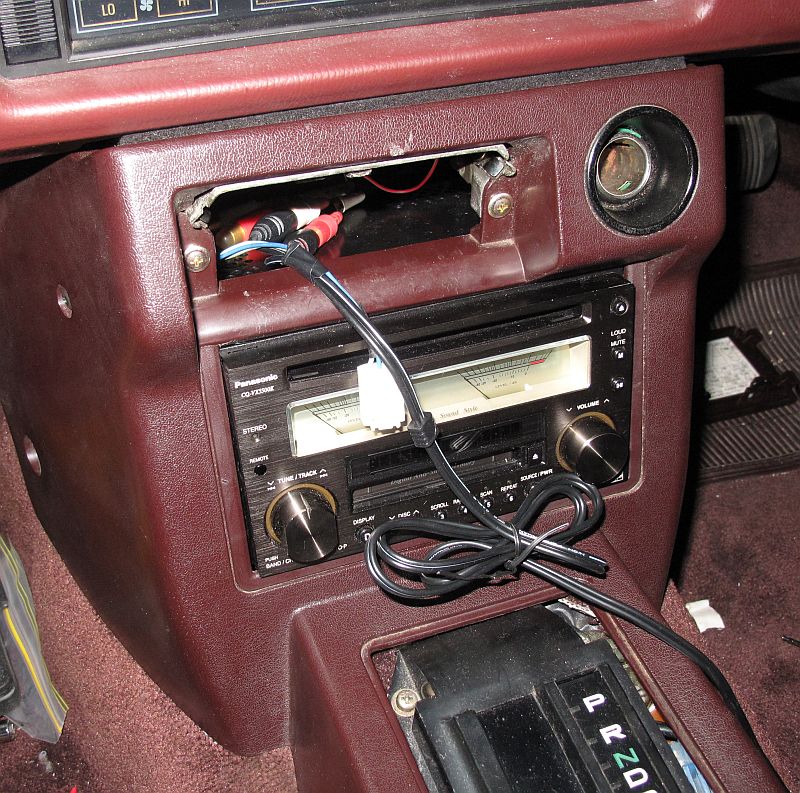

Wiring the auxillary connection into the ashtray.

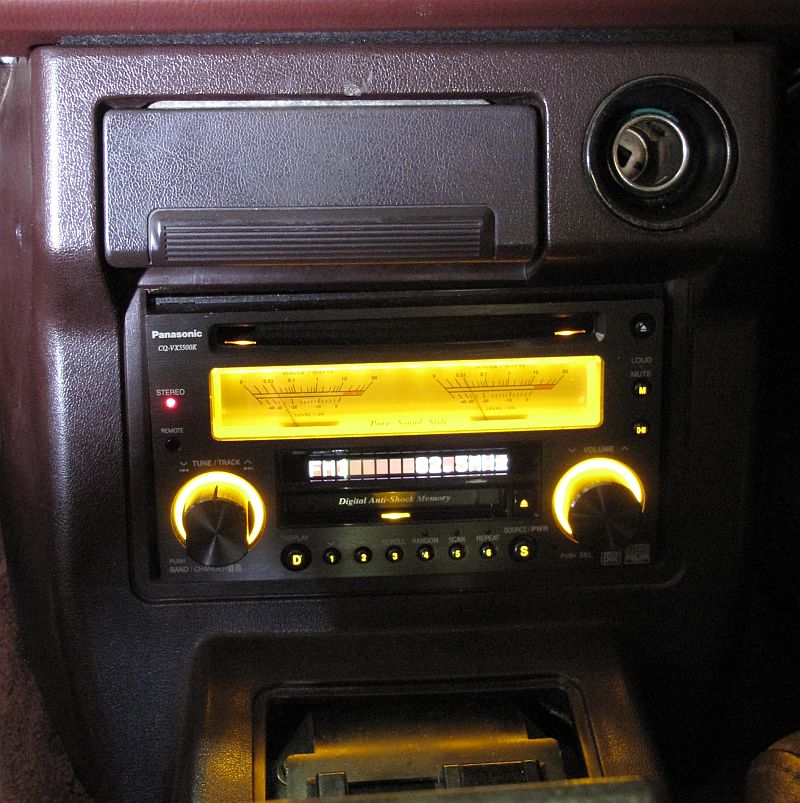

Stereo with lights.
Stereo
MZ12GT - Contents
- » Driving
- » Still Exists
- » Registration Day
- » Proof of Life
- » Garaged
- » Heat Managment
- » MZ12GT
- » Under wraps
- » Rear Speakers - Working
- » Iginition Lead Origami and Remaining Tasks
- » Exhaust - Install
- » Engine Bay - Before and After
- » Registered
- » Front Bumper - Install
- » Brake Speed Bleeding
- » Brake Bias / Proportioning Valve - Install
- » Brake Bias / Proportioning Valve - Rebuild
- » Brake Bleeding
- » Grille - Install
- » Cusco Strut Tower Bar - Install
- » Bonnet Install
- » Brake Master Cylinder Bleed and Install

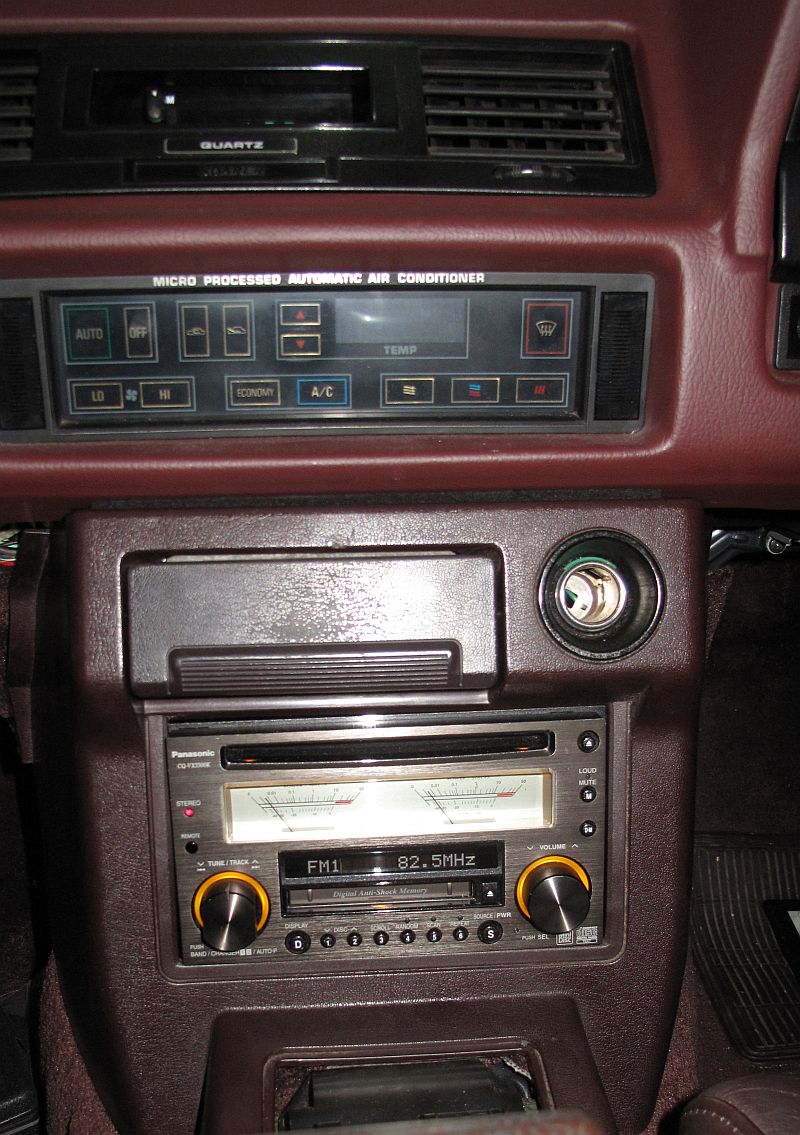

- » Stereo Install
